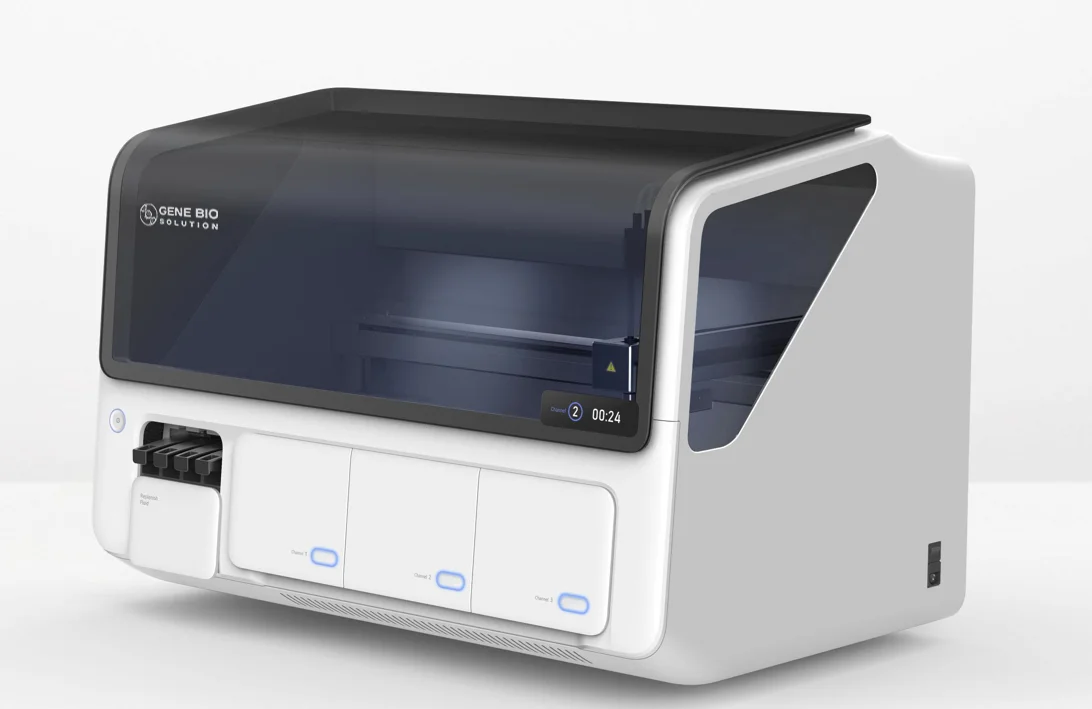

Fully automated stainer for IHC and ISH

In order to identify the antigens (polypeptides and proteins) in tissue cells, the GBS-360 Fully automated stainer for IHC and ISH uses the principle of specific binding of antigen and antibody to cause the antibody-labeled chromogenic reagent (fluorescein, enzyme, metal ion, isotope) to visualize a colour through a chemical reaction. Such antigens would be the subject of relative quantitative, qualitative, and localization studies. The product is used in conjunction with accessory reagents from our series to process samples prior to pathological investigation, including deparaffinization, antigen retrieval, staining, and pretreatment and post-hybridization wash for fluorescence in situ hybridization (FISH) detection.

Uninterrupted Operation

Slides can be continuously loaded continuously without interfering with the existing staining procedure.

Liquid Monitoring

Buffer real-time monitoring of the remaining liquid volume, reminding the user to add buffer and dispose of waste liquid in time.

Parallel Expansion

One computer can control 5 instruments, saving space.

Run Offline

The staining program runs when the device is disconnected from the software.

Key Technologies

Independent temperature control technology for each slide

● 36 staining modules are equipped with independent heating modules.
● Temperature control ranges from room temperature to 101°C, accurate and uniform temperature control, temperature fluctuation <0.5°C.

Wave-like mixing technology

● The liquid on the surface of the slide moves in waves to improve the antigen-antibody reaction, shorten the staining time, and ensure thorough cleaning. ● The motor drives the cover plate through the worm gear, and the cover plate can be opened to a larger angle, which is convenient for maintenance and cleaning.

Independent liquid cover film technology

● works long with IHC staining
● Improve reaction efficiency and ensure staining quality

RFID chip technology

● Reduce the pre-treatment time of the experiment, and place the reagent bottle without restriction.
● 40 reagent bottles are equipped with independent scanning antennas, and the time to identify 40 reagent bottles is less than 10s. It is recognized when inserted, efficient and accurate.

QR code identification technology

● Using QR code technology to identify slides, slides can be placed at will
● Identify 36 slides <30s

Economical reagent design

● Only needs 130 μL to cover the whole slide
● Reduce reagent residue

Uninterrupted operation

● During operation, slides can be loaded continuously without interfering with existing staining procedures.
● In the same way as stain module

Technical Parameter

Item Parameter
Instrument model
GBS-360
Function
Fully automated baking, dewaxing, antigen repair, staining and re-staining process.
Application
IHC、ISH、CISH、FISH、Dual ICC
Throughput
36
Reagent capacity
40
Running time / batch
<3.5h
Temperature range
Room temperature - 101℃
Continuous loading
Reagent volume
≤130μL
Reaction kinetics
Wave-like mixing technology
Delayed operation function
Waste liquid volume
<2L/batch
Weight
135kg
Dimension (D*W*H)
1050*690*736mm
Ambient temperature
18℃~30 ℃
Rated voltage
AC220V
Input power
900VA
Frequency
50Hz
GET IN TOUCH

Need Any Help

Direct Contact with us



    Gene Bio Fully Automatic IHC Stainer: The Ultimate Solution for Immunohistochemistry

    Immunohistochemistry (IHC) is a crucial technique in modern diagnostics, research, and medical laboratories. The Gene Bio Fully Automatic IHC Stainer is designed to streamline IHC processes, delivering precise, reproducible, and high-quality results with minimal human intervention. Whether you’re dealing with complex tissue samples or need a high-throughput solution for clinical diagnostics, this fully automated IHC stainer ensures optimal staining performance every time.

    Why Choose the Gene Bio Fully Automatic IHC Stainer?

    The Gene Bio Fully Automatic IHC Stainer stands out for its cutting-edge technology and remarkable ease of use. It is engineered to offer superior consistency, reduced manual errors, and enhanced reproducibility in every staining run. Here’s why it should be your go-to choice for IHC staining:

    1. Fully Automated Process for Efficiency and Precision

    The Gene Bio IHC Stainer automates the entire staining process, reducing the need for manual intervention. This results in faster turnaround times, consistent staining, and minimized human errors, allowing labs to focus on more critical tasks.

    2. Versatility with Multiple Staining Protocols

    This device is designed to handle a variety of tissue types and staining protocols. Whether you’re working with FFPE (Formalin-Fixed Paraffin-Embedded) tissue, frozen sections, or other sample types, the Gene Bio IHC Stainer can be tailored to meet your lab’s specific needs.

    3. Consistent and Reproducible Results

    Achieve reliable, high-quality results with minimal variation. With precise temperature control, reagent dispensing, and timing, the Gene Bio IHC Stainer ensures each staining cycle is reproducible, essential for diagnostic accuracy and research integrity.

    4. User-Friendly Interface

    The intuitive touch-screen interface makes operation easy for both novice and experienced lab technicians. Customizable programs and a simple setup process reduce the learning curve, making this IHC stainer suitable for a wide range of laboratories.

    5. Optimized for High-Throughput Laboratories

    Ideal for high-volume labs, the Gene Bio Fully Automatic IHC Stainer can process numerous slides simultaneously, improving lab efficiency and productivity. With the ability to handle multiple samples at once, this IHC stainer maximizes throughput without compromising quality.

    6. Minimal Reagent Consumption

    The Gene Bio IHC stainer is designed to optimize reagent use, reducing waste and lowering operational costs. It uses precision dispensing systems to ensure the exact amount of reagents are used, making it both environmentally friendly and cost-efficient.

    Key Features of the Gene Bio Fully Automatic IHC Stainer

    Automated Reagent Management: Simplifies the entire staining process by automating reagent application and washing cycles.

    • Wide Range of Antibodies: Compatible with a large variety of primary antibodies and detection kits.

    • Compact Design: Saves valuable lab space while maintaining a high-performance output.

    • Flexible Staining Capacity: Capable of processing large batches of slides in a single run.

    • Advanced Temperature Control: Ensures the ideal environment for every step of the staining process.

    • Error-Free Operation: Built-in diagnostics and user alerts prevent common mistakes and ensure optimal performance.


    Applications of the Gene Bio Fully Automatic IHC Stainer

    The Gene Bio Fully Automatic IHC Stainer is versatile and suitable for a broad range of applications, including:

    • Cancer Research: Accurate tumor markers and protein expression analysis.

    • Diagnostic Pathology: Support for the diagnosis of various cancers and infectious diseases.

    • Molecular Biology: For the analysis of tissue-specific proteins and biomarkers.

    • Pharmaceutical Development: Vital for drug development and pre-clinical research.

    How the Gene Bio IHC Stainer Enhances Your Lab’s Workflow

    By integrating the Gene Bio Fully Automatic IHC Stainer into your lab, you can expect a significant improvement in your overall workflow. This automation helps your team reduce manual labor, increase consistency, and reduce variability between different technicians. Plus, with precise automation, you’ll enhance data reliability, an essential factor for both clinical and research applications.

    Save Time and Money

    With the Gene Bio Fully Automatic IHC Stainer, your laboratory will save valuable time by eliminating the need for manual preparation, staining, and monitoring of slides. The automation reduces operational errors, waste of reagents, and the potential for rework, ultimately saving both time and money.

    Easy Maintenance and Support

    Maintaining your Gene Bio IHC stainer is simple, with built-in features that allow for easy cleaning and maintenance. Plus, you’ll have access to customer support and detailed user manuals to ensure your IHC stainer remains in top working condition.

    Why Automation is the Future of Immunohistochemistry

    In today’s fast-paced and ever-evolving laboratory environment, automation is no longer a luxury—it’s a necessity. The Gene Bio Fully Automatic IHC Stainer sets the standard for automation in IHC, offering efficiency, accuracy, and consistency. By reducing hands-on time and eliminating the potential for errors, the Gene Bio IHC Stainer makes it easier for labs to meet the increasing demands for high-quality diagnostic results and research data.

    Conclusion

    The Gene Bio Fully Automatic IHC Stainer is the ultimate solution for high-quality, efficient, and automated immunohistochemical staining. With its advanced features, versatile applications, and user-friendly interface, it is the ideal choice for laboratories focused on achieving reliable results and improving their workflow.

    For more information or to get a quote, contact us today and discover how the Gene Bio Fully Automatic IHC Stainer can elevate your lab’s performance
